QuattroPod M1

Receiver: Intel SDM-S Module for compatible displays.
Transmitter (optional accessory): Connect a single USB cable to a PC or compatible mobile device to mirror instantly.
Streaming protocols: Apple AirPlay, Miracast and Google Cast.

What's Included in the QuattroPod M1 package?

The QuattroPod M1 package consists of one receiver M1:

QuattroPod M1

Optionally, the QuattroPod M1 can be combined with one or more U01 transmitters:

QuattroPod Transmitter U01

How exactly does the QuattroPod M1 work?

For a wireless presentation, the QuattroPod M1 serves as the receiver and plugs into a display slot that supports Intel® Smart Display Module (Intel® SDM-S). You can then cast your content using any one of the following methods:

a) Simple Screen Mirroring

Use your device's own built-in screen mirroring function. This includes Miracast for Windows/Android, Apple AirPlay for iOS/macOS and Google Cast using the Google Chrome webbrowser.

QuattroPod M1

A split screen shared display feature from multiple sources is supported (up to 4 devices simultaneously) as well as extended desktop. In either case you do not require the optional QuattroPod transmitter U01.

b) via Transmitter U01 (Optional Accessories)

The transmitter connects to your notebook or MacBook via USB-C or USB-A. Alternativ kann der Sender auch über den USB-A-Anschluss mit dem Ladekabel eines Smartphones und Tablets verbunden sein.

QuattroPod M1

If the M1 receiver and U01 transmitter are paired and ready, screen mirroring will begin automaticaly after selecting Type A or C on the transmitter.

Optional you can connect a mobile device using its charger cable to the USB A port of the transmitter. To do this the transmitter dial must be set to "Mobile". Up to 32 transmitters can collaberate with one receiver.

Simple Setup

The Receiver M1 is powered via then Intel® SDM-S Interface. It can then be integrated into your network either via Wi-Fi or network cable.

QuattroPod USB

When using the optional accessories transmitter U01 it must be connected to your Notebook/macBook via USB-C or USB-A for the video and for power. Optionally you can connect a mobile device using its charger cable to the USB-A port of the transmitter.

QuattroPod USB

The Highlights

Notebook, Tablet, Smartphone

QuattroPod series can handle of all your devices. No matter if it's a notebook, tablet or smartphone: The QuattroPod M1 supports Windows, macOS, iOS, Android, Chrome OS and Linux.

Ultra HD (4K)

QuattroPod M1 supports 4K resolution of 3840 x 2160 pixels for Apple AirPlay, Miracast or Google Cast. The optional transmitter U01 supports up to Full HD resolution.

Apple AirPlay

You can mirror a iPad, iPhone or macOS device using Apple AirPlay. So in this case you do not require the optional transmitter U01.


Windows and Android devices can also share your screen content using Miracast. QuattroPod M1 supports Miracast natively. So in this case you do not require the optional transmitter U01.

Google Cast

QuattroPod M1 supports screen mirroring via Google Cast in your Chrome Browser for Windows or from the Control Center for Android and Chrome OS.

Up to 4 screens simultaneously

Wouldn't it be great to be able to present more than one screen at once? Now you can. QuattroPod M1 supports up to 4 devices sharing one split screen simultaneously

Touch Back

The Touch Back feature allows you to wirelessly interract with a computer via your display's touch screen. Touch gestures with up to 10 finger gestures can be sent back to your computer wirelessly via the optional receiver U01.


MultiCast is a broadcast of one screen to multiple displays. You can mirror any device i.e. a Windows PC, MacBook, iPad, Android, to up to 8 displays via the transmitter U01.


The QuattroPod M1 can also connect to your network and the internet via its LAN (PoE) port. This is especially useful in areas with poor or no Wi-Fi reception.

Centrally Managed Devices

Centrally manage all your QuattroPod series devices in one network with the CMS Software (CMS=Central Management System) for Windows and macOS.



All prices are in Euros and subject to VAT plus postage & packaging.

QuattroPod usb
QuattroPod M1

Price on request

In stock

  • 1 x QuattroPod M1

Contact us


QuattroPod M1

QuattroPod M1 / Transmitter U01 (Optional Accessories)

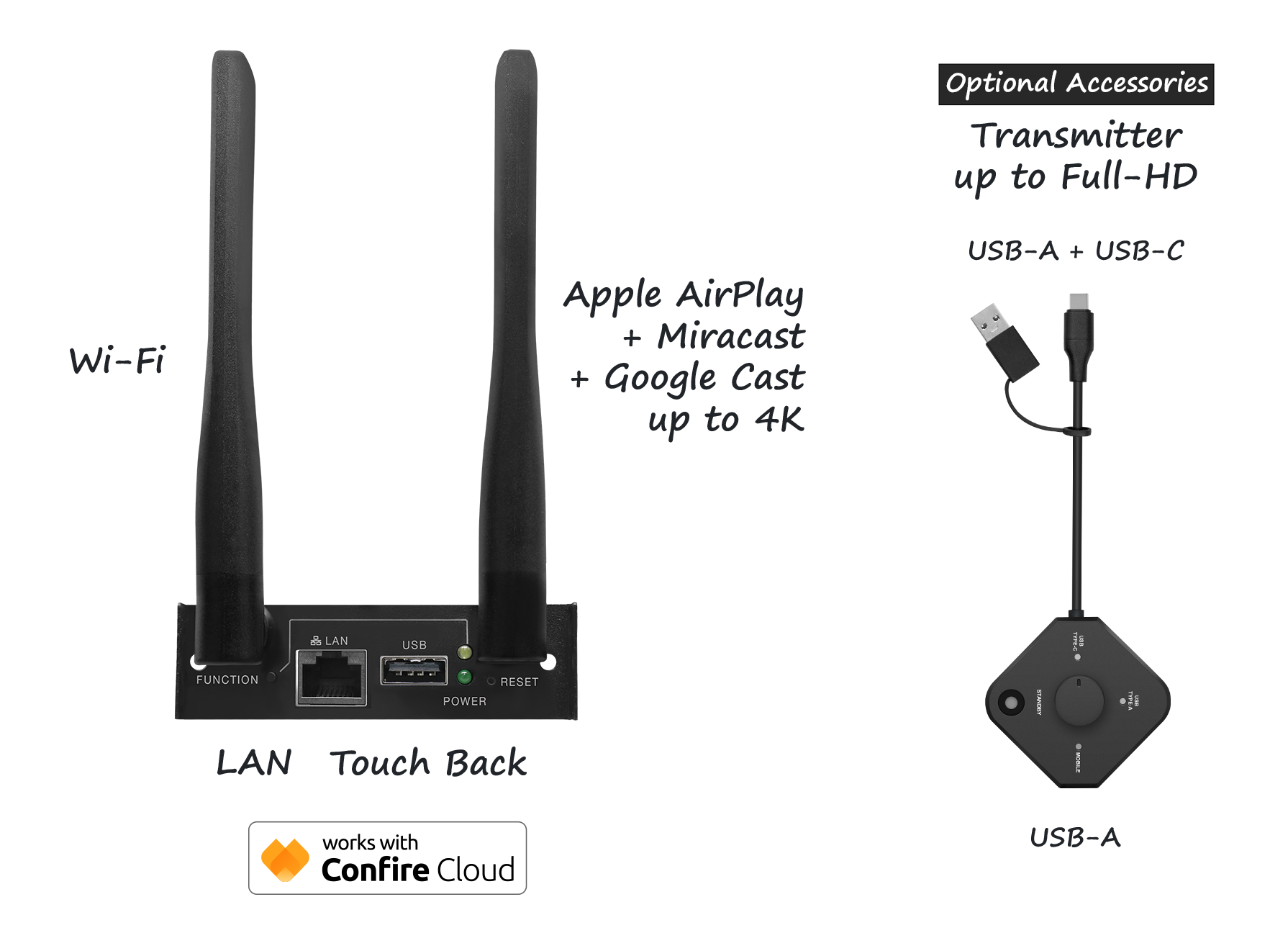

Receiver M1
Ports USB-A, RJ45
Dimensions (W x D x H) according to Intel® SDM-S specification (without antenna)
Power Supply via Intel® SDM-S Interface
Transmitter U01
Ports USB-C output, USB-A output (with adapter), USB-A input for mobile devices
Dimensions (W x D x H) 61 mm x 61 mm x 24 mm
Power Supply DC-in 5V/0,9A
CPU AM8270
Maximum Resolution 4K / 30 fps
1920 x 1080 (60fps) transmitter input
3840 x 2160 (30fps) receiver output
Wi-Fi Standard 802.11 ac
Wi-Fi Frequency 5 GHz
Maximum number of transmitters 32
Simultaneous casting 4 transmitters / devices
Authentification protocol WPA2-PSK
Special features Supports Apple AirPlay, Miracast, Google Cast, Touch Back (via transmitter U01)
Supported operating systems Windows 7/8/10/11, macOS X 10.12 or above, iOS 10 or above, Android 5 or above, Chrome OS, Linux
Security CE, FCC
Manufacturer Winner Wave Limited, Taiwan
Data Sheet Download PDF
